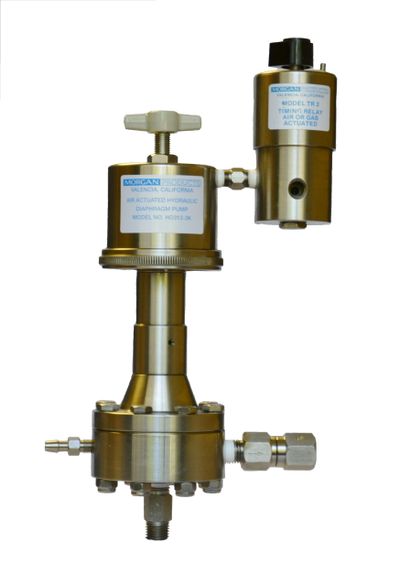

HD Series - Hydraulic Diaphragm Injection Pumps

Typical applications for the HD series include caustic, acid, formaldehyde and odorant injection

A patented hydraulic-driven diaphragm system that isolates the chemical from the plunger and seal

Diaphragms are Teflon-laminated to prevent corrosion

All fluid-contact parts are 316 stainless steel, particularly recommended for corrosive environments

The oil in the upper chamber serves as a plunger lubricant and a hydraulic fluid

The TR2 timer has become a design standard with a lightweight, simple design that's easy to maintain

Notes:

All pumps require either a TR1 timing relay, a TR2 timing relay or an electric solenoid valve.


HD1062, HD1062-3K requires a snap action relay.


Maximum stroke rate for all pumps is 50 strokes per minute (SPM) with the exception of HD2000, which has a maximum of 35 SPM.

HD Series Datasheet (pdf)

Download
