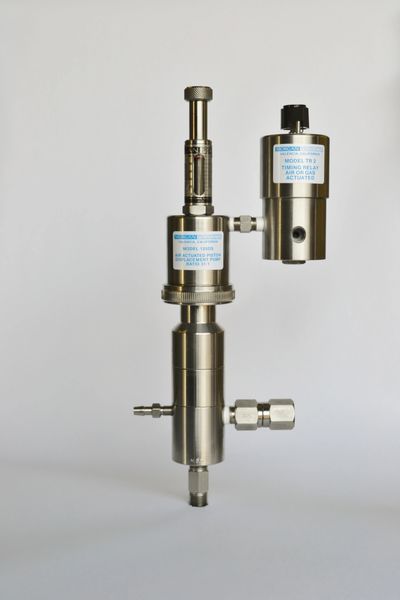

Pneumatic Chemical Injector Pumps

Typical applications include methanol and corrosion inhibitor injection

All stainless steel construction

Double seal for leakage prevention

High chemical compatibility with the use of ceramic plungers and a wide selection of seals material

The air piston and plunger can be replaced independently to reduce costs



Notes:

All pumps require either a TR1 timing relay, a TR2 timing relay or an electric solenoid valve.


All 400 and 4000 series pumps require SR1S snap action relay.


Model 800DS, and larger require SR2S snap action relay.


The maximum stroke rate for all pumps is 50 strokes per minute (SPM) with the exception of 800DS and larger, which have a maximum of 35 SPM.

Pneumatic Chemical Injector Series Datasheet (pdf)

Download
